VADO NOTION SQUARE 1 OUTLET CONCEALED THERMOSTATIC SHOWER VALVE £199 - RRP £395

VADO NOTION SQUARE 1 OUTLET CONCEALED THERMOSTATIC SHOWER VALVE £199 - RRP £395

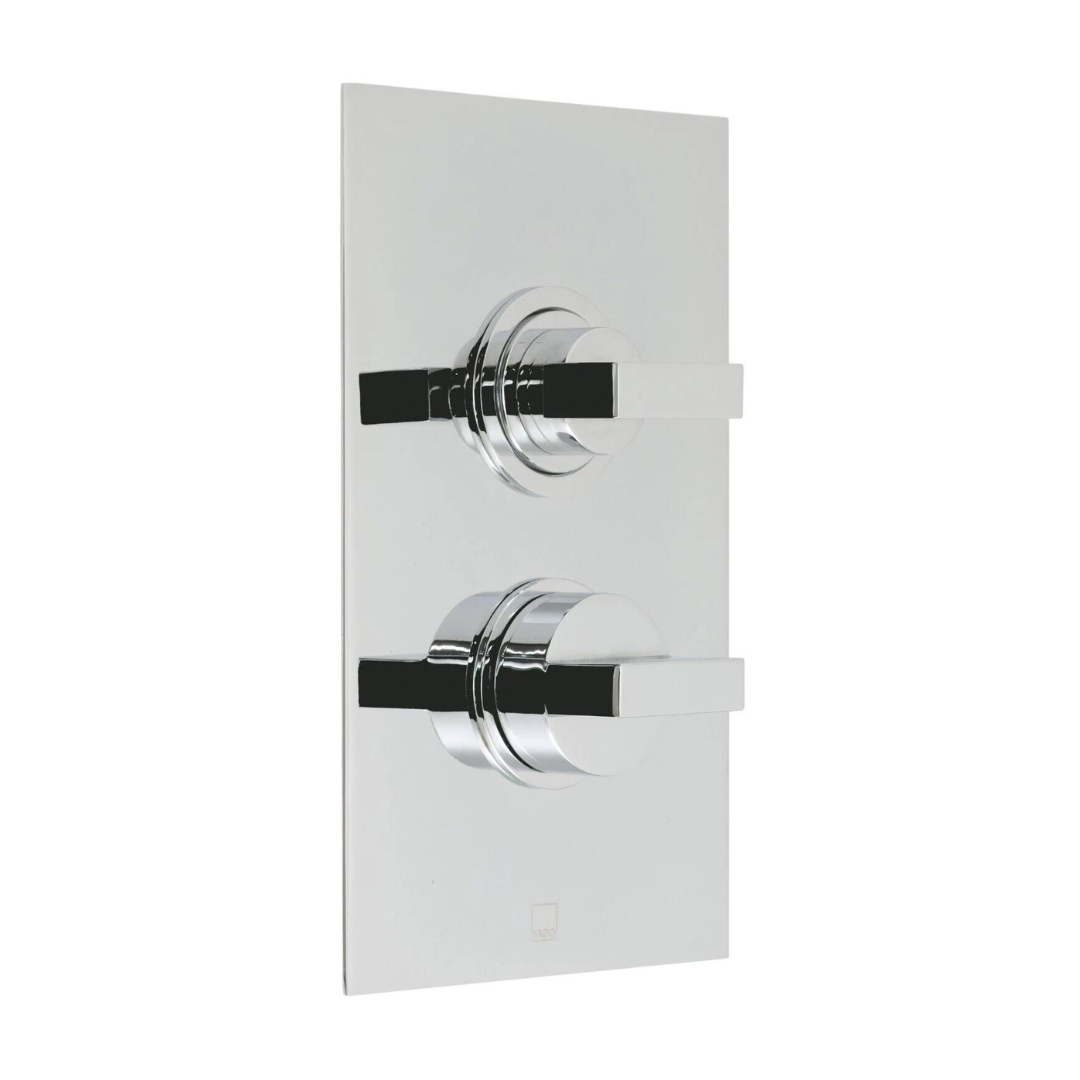

Square Style Concealed 1 outlet wall mounted thermostatic 3/4" shower valve with rectangular faceplate.

• Chrome Finish
• 12-year manufacturers guarantee
• RRP £395
• *FREE DELIVERY*

Features

A two handle one outlet valve is simple to operate, making it the perfect choice for those looking to control one function, top handle controls flow, the bottom handle controls the temperature.

Product Specifications:

• Concealed 2 handle thermostatic shower valve
• Wall mounted
• With rectangular backplate
• Thermostatic temperature safety stop at 38C to prevent risk of scalding
• Thermostatic cartridge CEL-001B/B-WAX
• Flow cartridge CEL-002A/B-3/4
• 2 x 3/4” female inlets
• 1 x 3/4” female outlet
• Includes fittings for 1/2” and 3/4” pipework
• Min-max wall mount 68-77mm (standard)
• Optimum installation depth 73mm (standard)
• Minimum operating pressure required: 0.2 bar  for shower operation, 1.0 bar Bath filler operation

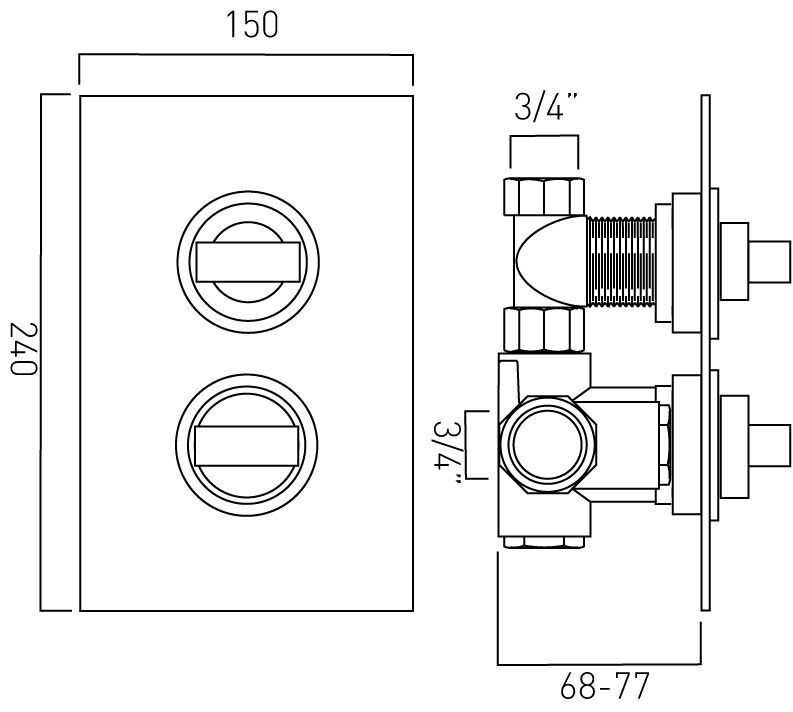

For complete size details please refer to the technical drawing.
